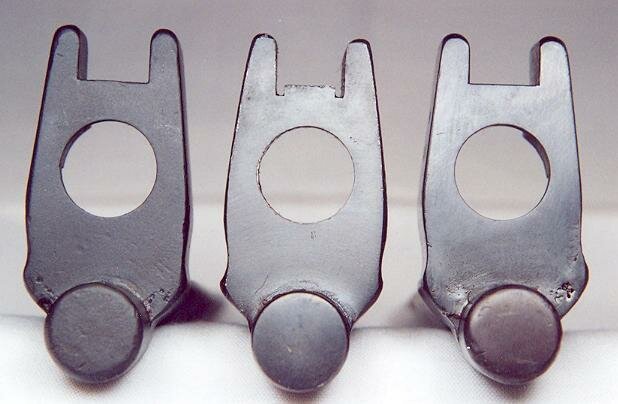

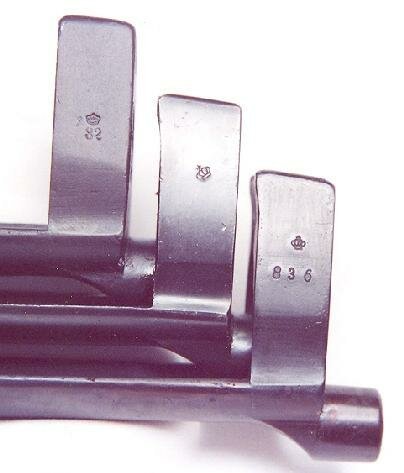

Left: Mauser flat back.
Middle: Husqvarna, slightly curved.
Right: Gustaf, curved back.
Left: Mauser
Middle: Husqvarna.
Note the two undercuts in the middle, found only on Husqvarna manufacture.
Right: Gustaf

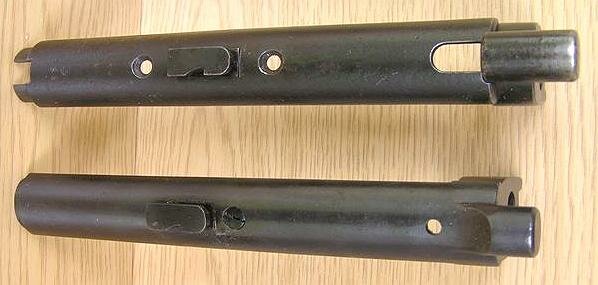

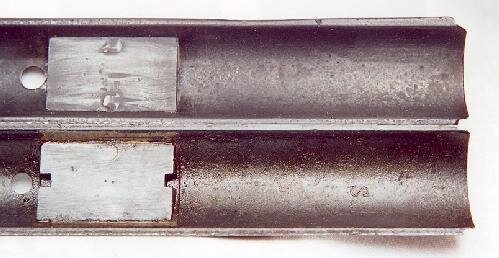

Top: Gustaf
Bottom: Husqvarna
Researchers have assumed the S to be Stockholm. The S has been noted on HVA and Gustaf nosepieces.
The notches on the HVA nosepiece have also been noted on Gustaf-made parts.

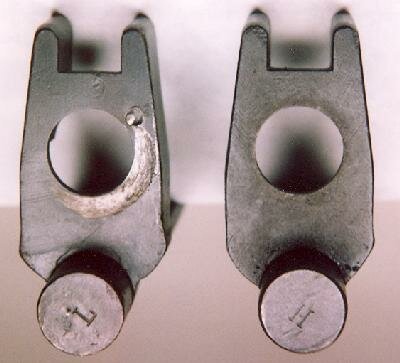

These two bayonet lugs are both from 1932 dated carbines. They both have straight crowns (Gustaf). The "H" is s/n 112433, "L" is s/n 112986. The meaning of the letters is unknown.

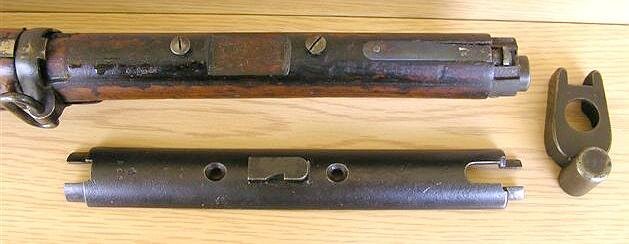

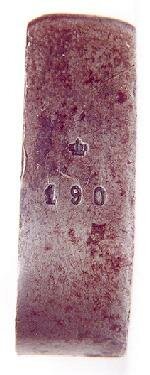

This m/94 nosepiece is from Gustaf s/n 5980 mfg in 1898.

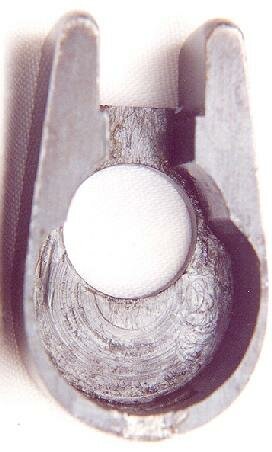

Inside of s/n 5980.

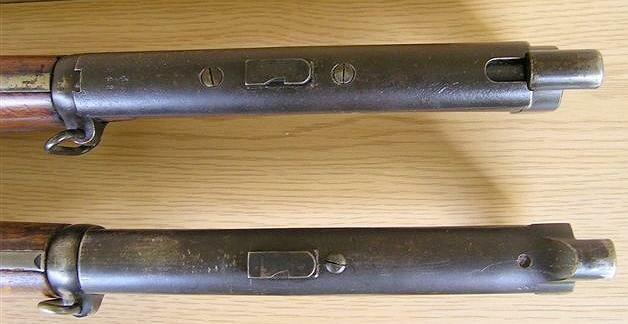

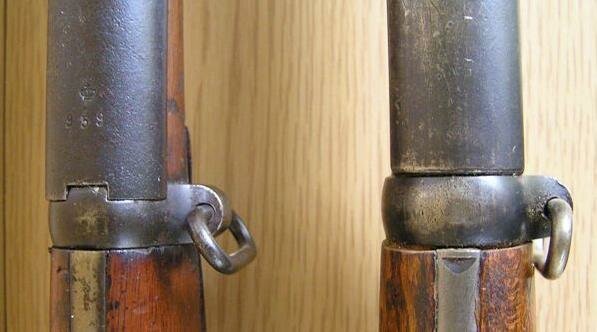

Gustaf m/94 s/n 4602 from 1898.

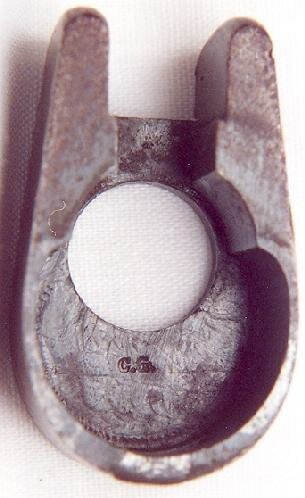

Gustaf s/n 4602 from 1898 with CG stamped inside.
