Translation
Rifle (gevär) m/96
Sight for ogive bullet (m/94 round nose)
Shooting with spitzer bullet (m/41)
Range Sight setting/correction
This plate is brass with black paint.
Trajectory Plates & Decals
This area of decals and plates can be a bit confusing. For an m/96 rifle with the sights calibrated for the old m/94 bullet there is a plate or decal showing the sight correction when using the newer m/41 bullet. If there is a zero in the far right column, there is no sight correction. If there is a -2, that means the shooter must hold 2 decimeters low to hit the target, etc. Decals are the most commonly found. They were glued to the stock, then shellaced over. The plates can be found in brass and aluminum and were held to the stock with four small brads.
Translation
Rifle (gevär) m/96
Sight for ogive bullet (m/94 round nose)
Shooting with spitzer bullet (m/41)
Range Sight setting/correction

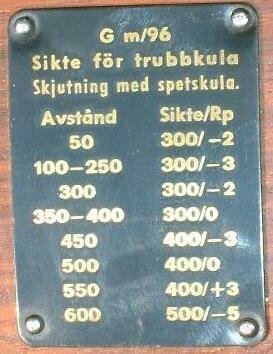

This plate is brass with black paint.

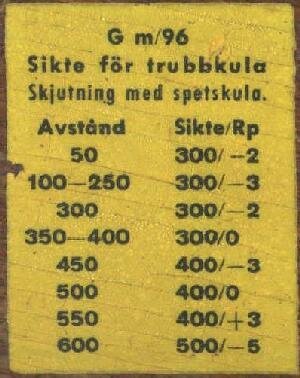

This is the most common decal seen.
Its glued on with shellac and shellaced over.

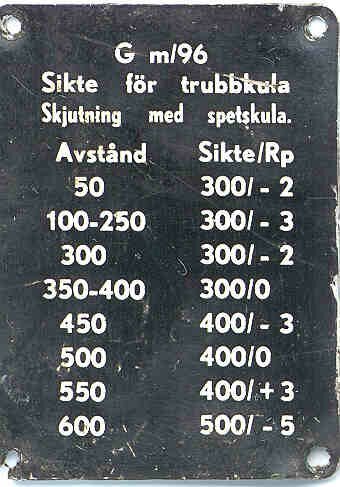

This plate is aluminum with black paint.

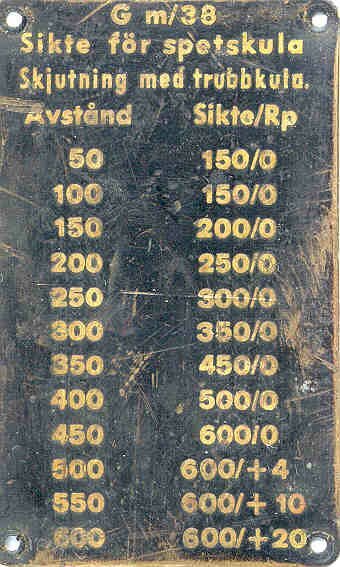

Rifle m/38
Sight for spitzer bullet (m/41)
Shooting with ogive bullet (m/94)
Range Sight setting/correction

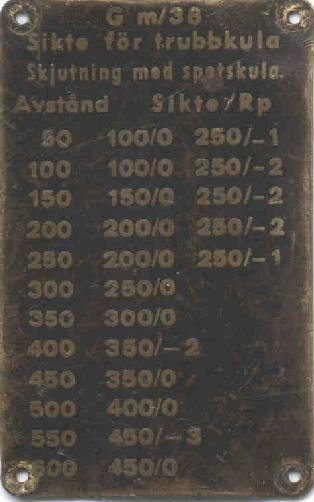

Rifle m/38
Sight for ogive bullet (m/94 round nose)
Shooting with spitzer bullet (m/41)
Range Sight setting/correction
Karbin m/94
Sight for ogive bullet (m/94 round nose)
Shooting with spitzer bullet (m/41)
Range Sight setting/correction
There is also a decal seen on some m/94.

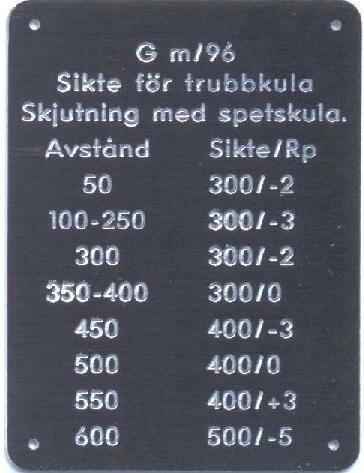

FYI.. this is a reproduction trajectory plate. There may be others out there, so be aware.
The maker of this particular plate is not marketing it as original. It is anodized aluminum.
